Product Description:

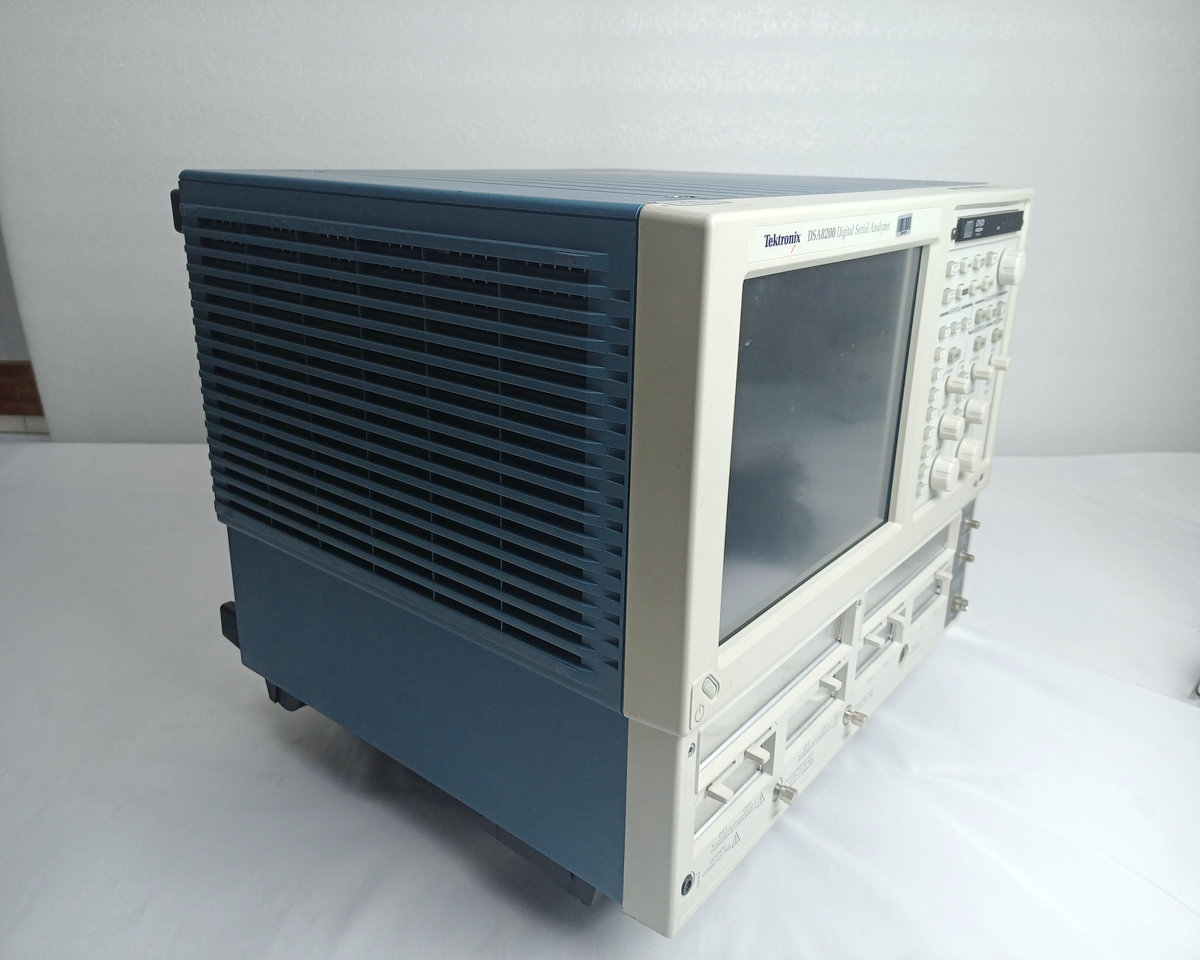

For developing today's high-speed serial devices, the Tektronix DSA8200 Digital Serial Analyzer Sampling Oscilloscope is one of the most versatile tools for communications, computer and consumer gigabit transmitter and signal path characterization and compliance verification. With outstanding bandwidth, signal fidelity, and the most scalable modular architecture, the Tek DSA8200 provides the highest performance TDR and interconnect analysis, the most accurate signal impairment analysis, and BER calculations for current and emerging serial data technologies.
The Tektronix DSA8200 Digital Serial Analyzer provides unmatched measurement system fidelity and ultra-low jitter, ensuring the most accurate acquisition of high-speed signals. You can gain advanced analysis benefits from the phase reference module's 200 fs acquisition jitter. Sampling oscilloscopes go a step further, with the phase reference module, the DSA8200 can acquire and measure SSC (spread spectrum clock) signals.
Features and benefits of the Tektronix DSA8200 include:
-
Industry's first mainframe to support up to 8 input channels for increased flexibility and throughput
-
Measurement system with more than 100 automatic measurements
-
Complete communication measurement suite including two types of OMAs, SSC profiles and many others
-
Automated ITU/ANSI/IEEE mask testing
-
Masks and measurements for SONET/SDH, FC, Ethernet and other built-in standards
-
Optical module 80C10B up to 80 GHz
-
Measure and separate deterministic data dependent and random jitter
-
Measure vertical noise, isolate deterministic data correlation
-
High Accuracy BER and Eye Diagram Estimation with DDPWS Support
-
FFE/DFE equalization, transmitter equalization
-
Channel emulation for channels with >30 dB loss
-
Up to 50 GHz TDR bandwidth, 15 ps rejection rise time and 12 ps event rise time
-
Lowest noise for accurate and repeatable TDR measurements – 600 μVRMS at 50 GHz
-
Independent sampler deflection ensures easy fixture and probe de-embedding
