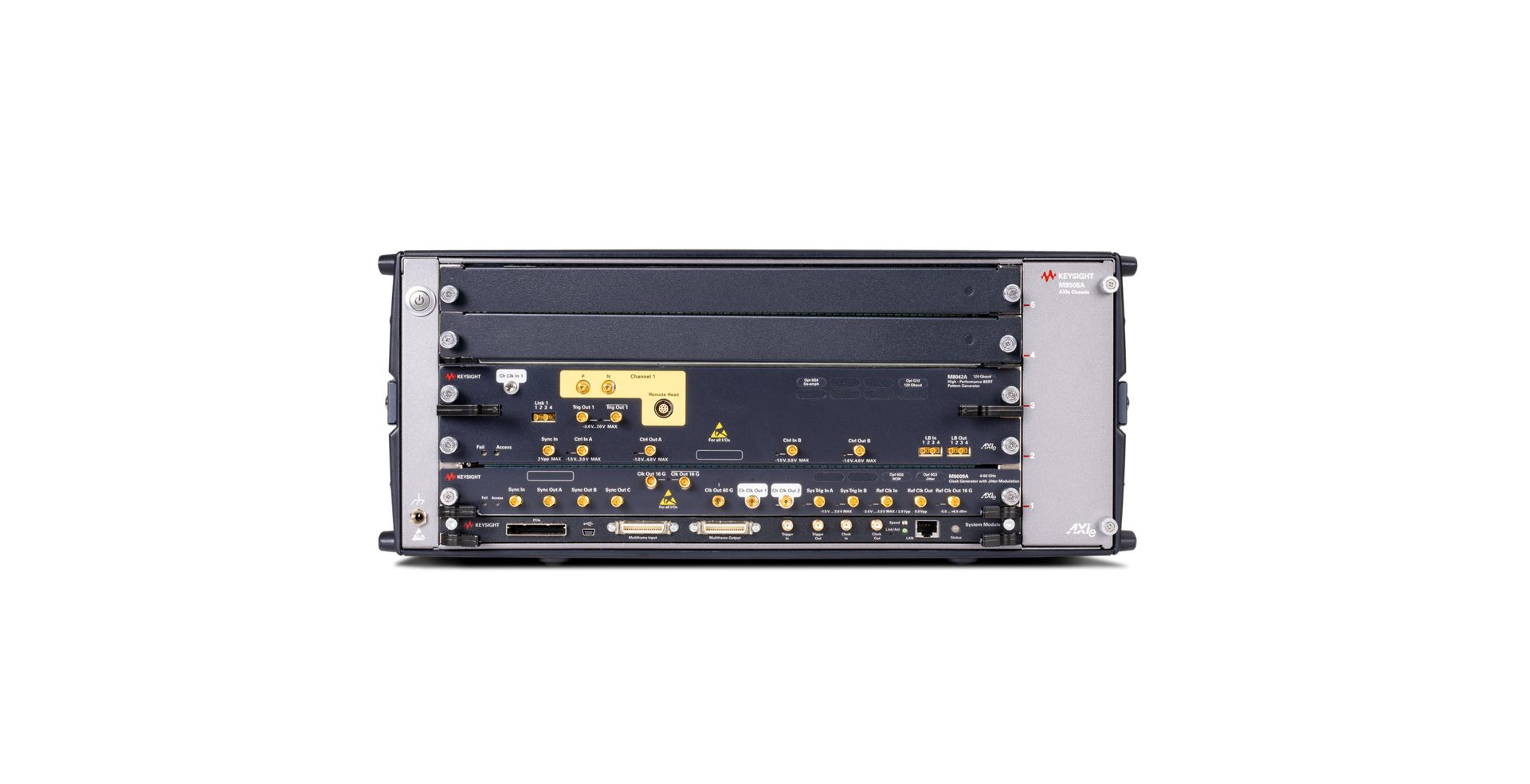

The high-performance Agilent J-BERT M8020A supports fast and accurate receiver characterization of single channel and multi-channel devices with transmission rates up to 16 or 32 Gb/s. M8020A provides comprehensive integrated functions that can simplify your testing setup. Automatically perform in-situ calibration of signal conditions to ensure accurate and reproducible measurement results. Through interactive link training, it can act as a link partner for your device under test. Combining so many advantages, J-BERT M8020A can accelerate your design analysis.
characteristic:
-
The data rate of the pattern generator and error detector can reach up to 8.5/16 Gb/s
-
Adopting M8062A and a 32 Gb/s BERT front-end that can be expanded to 32 Gb/s
-
Integrated and calibrated jitter injection: RJ, PJ1,PJ2,SJ,BUJ, Sinusoidal interference (common mode and differential mode), SSC (triangular and arbitrary, residual)
-
8 beats to remove stress (positive and negative), maximum 20 decibels
-
Integrated and adjustable ISI for loss simulation
-
SAS-3, USB 3.0/3.1, and PCI Express interactive link training, supporting 8 GT/s and 16 GT/s
-
Interactive TxEQ training for IEEE 10GBASE-KR, 25GBASE-KR, and 100GBASE-KR4
-
Built in clock data recovery and balancing
-
System integration with M8000 BER series M807A software
-
Seamless operation with BERT/Scope and arbitrary waveform generators
